Reinforcement Learning (the manual way)

Reinforcement Learning is fundamentally interesting to me — a computer getting a series of inputs, being told what is good/bad and learning how to do better.

In this case, RL was done just with a few algorithms and data structures to understand how RL works. No fancy AI libraries to be seen here…

I started from this great post: https://towardsdatascience.com/hands-on-introduction-to-reinforcement-learning-in-python-da07f7aaca88 and extended the project a fair bit.

Here is a maze where the robot (a “.”) starts in the top left corner and get’s a yummy reward when it makes it passed all the walls (“X”) to the bottom right hand corner.

The dots are showing all of the places that the robot visited during an attempt.

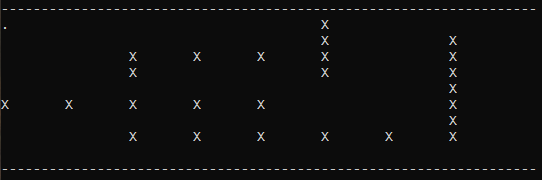

The maze to navigate

It has 4,000 attempts (episodes) at reaching the end of the maze. The best-case is to complete the maze in 24 moves, however at the start (when it has no knowledge and is 100% experimentation), it can take a few hundred or even thousands of moves.

We control how much exploit (where it uses its experience to make decisions) vs experimentation (robot walks in a random direction) is chosen as the program runs — starting with 100% experimentation and finishing with 100% exploitation.

Anyway, without further ado, here is the result and then we’ll explain the RL parts of the code:

Reinforcement Learning relies on us giving a reward (the carrot) or a penalty (the stick).

    def get_reward(self):
        # if at end give 0 reward
        # if not at end give -1 reward
        if self.robot_position == (self.maze_size[0]-1, self.maze_size[1]-1):
            return 0
        else:
            return -1

In this case, the machine is simply penalised for every turn it takes per episode. We want it to perform as few moves as possible to complete the maze.

Statistically choose if we are going to go a random direction (experiment) or whether we are going to use our knowledge (exploit):

    def choose_action(self, state, allowedMoves):
        maxG = -10e15
        next_move = None
        randomN = np.random.random()
        if randomN < self.random_factor:
            # if random number below random factor, choose random action
            next_move = np.random.choice(allowedMoves)
        else:
            # if exploiting, gather all possible actions and choose one with the highest G (reward)
            for action in allowedMoves:
                new_state = tuple([sum(x) for x in zip(state, ACTIONS[action])])
                if self.G[new_state] >= maxG:
                    next_move = action
                    maxG = self.G[new_state]
        return next_move

The exploit part of this is where some of the RL magic happens. If the next state is one that we have followed more often to get better rewards (or in this case, less-penalty), then we follow that path.

And the learning part:

    def learn(self):
        target = 0
        #this is the important bit - re-affirming positive G
        for prev, reward in reversed(self.state_history):
            self.G[prev] = self.G[prev] + self.alpha * (target - self.G[prev])
            target += reward
        self.state_history = []

This is called at the end of each episode. Weighting is added to every state that was followed, depending on the success of the overall episode. In this case “state” contains every position (that isn’t a wall) and every possible direction that the robot can take from that position.

In this way, we reinforce the pathways that were most successful.

I had a lot of fun building upon https://medium.com/@nehadesaraju’s work here.

Complete files are here: https://github.com/nfitbh/ai-rl

src/agent.py

import numpy as np

ACTIONS = {'U': (-1, 0), 'D': (1, 0), 'L': (0, -1), 'R': (0, 1)}

class Agent(object):
    def __init__(self, states, alpha=0.15, random_factor=0.8, random_adjust=-0.01, min_random_factor=0.1): # 80% explore, 20% exploit
        self.state_history = [((0, 0), 0)] # state, reward
        self.alpha = alpha
        self.random_factor = random_factor
        self.G = {}
        self.init_reward(states)
        self.random_adjust = random_adjust
        self.min_random_factor = min_random_factor

    def init_reward(self, states):
        for i, row in enumerate(states):
            for j, col in enumerate(row):
                self.G[(j, i)] = np.random.uniform(low=1.0, high=0.1)

    def choose_action(self, state, allowedMoves):
        maxG = -10e15
        next_move = None
        randomN = np.random.random()
        if randomN < self.random_factor:
            # if random number below random factor, choose random action
            next_move = np.random.choice(allowedMoves)
        else:
            # if exploiting, gather all possible actions and choose one with the highest G (reward)
            for action in allowedMoves:
                new_state = tuple([sum(x) for x in zip(state, ACTIONS[action])])
                if self.G[new_state] >= maxG:
                    next_move = action
                    maxG = self.G[new_state]
        return next_move

    def update_state_history(self, state, reward):
        self.state_history.append((state, reward))

    def learn(self):
        target = 0
        #this is the important bit - re-affirming positive G
        for prev, reward in reversed(self.state_history):
            self.G[prev] = self.G[prev] + self.alpha * (target - self.G[prev])
            target += reward
        self.state_history = []


    def update_random_factor(self):

        self.random_factor += self.random_adjust # decrease random factor each episode of play
        if self.random_factor < self.min_random_factor:
            self.random_factor = self.min_random_factor

src/environment.py:

from time import sleep

import numpy as np

ACTIONS = {'U': (-1, 0), 'D': (1, 0), 'L': (0, -1), 'R': (0, 1)}

class Maze(object):
    def __init__(self):
        self.maze_size = (9, 9)
        self.maze = np.zeros(self.maze_size)
        #contruct the walls of the maze
        self.maze[0, 0] = 2
        self.maze[5, :5] = 1
        self.maze[:4, 5] = 1
        self.maze[2, 2:6] = 1
        self.maze[3, 2] = 1
        self.maze[1:8, 7] = 1
        self.maze[7, 2:8] = 1\
        #robot start
        self.robot_position = (0, 0)
        self.steps = 0
        self.construct_allowed_states()
        self.maze_visited = self.maze.copy()
        #used for screen shotting the maze before action begins
        #self.maze_visited[0, 0] = 0
        #print(self.st())
        #exit()

    def is_allowed_move(self, state, action):
        # check allowed move from a given state
        y, x = state
        y += ACTIONS[action][0]
        x += ACTIONS[action][1]
        if y < 0 or x < 0 or y > self.maze_size[0]-1 or x > self.maze_size[1]-1:
            # if robot will move off the board
            return False
        return (self.maze[y, x] != 1) # not a wall

    def construct_allowed_states(self):
        # create a dictionary of allowed states from any position
        # using the isAllowedMove() function
        # this is so that you don't have to call the function every time
        allowed_states = {}
        for y, row in enumerate(self.maze):
            for x, col in enumerate(row):
                # iterate through all spaces
                #print(x, y)
                if self.maze[(y,x)] != 1:
                    # if the space is not a wall, add it to the allowed states dictionary
                    allowed_states[(y,x)] = []
                    for action in ACTIONS:
                        if self.is_allowed_move((y,x), action) & (action != 0):
                            allowed_states[(y,x)].append(action)
        self.allowed_states = allowed_states

    def update_maze(self, action):
        y, x = self.robot_position # get current position
        self.maze[y, x] = 0 # set the current position to 0
        y += ACTIONS[action][0] # get new position
        x += ACTIONS[action][1] # get new position
        self.robot_position = (y, x) # set new position
        self.maze_visited[y, x] = 2
        self.maze[y, x] = 2 # set new position
        self.steps += 1 # add steps

    def is_game_over(self):
        # check if robot in the final position
        y, x = self.robot_position
        return ((y+1, x+1) == self.maze_size)


    def get_state_and_reward(self):
        return self.robot_position, self.get_reward()

    def get_reward(self):
        # if at end give 0 reward
        # if not at end give -1 reward
        if self.robot_position == (self.maze_size[0]-1, self.maze_size[1]-1):
            return 0
        else:
            return -1

    def st(self):
        st = "-------------------------------------------------------------------\n"
        for row in self.maze_visited:
            for col in row:
                if col == 0:
                    st += "\t" # empty space
                elif col == 1:
                    st += "X\t" # walls
                elif col == 2:
                    st += ".\t" # robot visited
            st += "\n"
        st += "-------------------------------------------------------------------\n"
        return st

src/term.py:

import statistics
import time

class Term:
    def __init__(self, robot, numEpisodes, frameDuration, reportAfterEpisode) -> None:
        self.robot = robot
        self.numEpisodes = numEpisodes
        self.reportAfterEpisode = reportAfterEpisode
        self.frameDuration = frameDuration
        self.frameStartTime = time.time()

    def print_maze_visited(self, maze, episodeNum, moveHistory):
        global frameStartTime
        print(chr(27) + "[2J")
        avgCompletion = 0
        if len(moveHistory) > self.reportAfterEpisode:
            avgCompletion = statistics.mean(moveHistory[-self.reportAfterEpisode:])
        random_factor_str = "{:.1f}".format(self.robot.random_factor*100) + "%"
        st = f"Episode Number:\t\t{episodeNum}/{self.numEpisodes}\nRandom Factor:\t\t{random_factor_str}\nIts per attempt:\t{avgCompletion}\n"
        st += maze.st()
        print(st)
        delta = self.frameDuration - (time.time() - self.frameStartTime)
        #print(delta)
        if delta > 0 and delta < self.frameDuration:
            time.sleep(delta)
        self.frameStartTime = time.time()

and src/main.py:

import time

import numpy as np
from environment import Maze
from agent import Agent
from term import Term


import statistics


frameStartTime = time.time()
frameDuration = 0.05



if __name__ == '__main__':
    num_episodes = 4000
    reportAfterEpisodes = 5
    maze = Maze()
    robot = Agent(maze.maze, alpha=0.1, random_factor=1.0, random_adjust=-0.00027, min_random_factor=0.0)
    term = Term(robot, num_episodes, frameDuration, reportAfterEpisodes)
    moveHistory = []

    for i in range(num_episodes):

        while not maze.is_game_over():
            state, _ = maze.get_state_and_reward() # get the current state
            action = robot.choose_action(state, maze.allowed_states[state]) # choose an action (explore or exploit)
            maze.update_maze(action) # update the maze according to the action
            state, reward = maze.get_state_and_reward() # get the new state and reward
            robot.update_state_history(state, reward) # update the robot memory with state and reward

            if maze.steps > 10000:
                break

        robot.learn() # robot should learn after every episode
        robot.update_random_factor()
        moveHistory.append(maze.steps) # get a history of number of steps taken to plot later

        if i % reportAfterEpisodes == 0:
            term.print_maze_visited(maze, i, moveHistory)
        if i < num_episodes-1:
            maze = Maze() # reinitialize the maze
    term.print_maze_visited(maze, i+1, moveHistory)

finally a Dockerfile:

ARG PYTHON_VERSION=3.11.4
FROM python:${PYTHON_VERSION}-slim as base

ENV PYTHONDONTWRITEBYTECODE=1
ENV PYTHONUNBUFFERED=1

WORKDIR /app

#RUN apt-get update -y
#RUN apt install python3 -y
#RUN pip install --upgrade pip
RUN --mount=type=cache,target=/root/.cache/pip \
    --mount=type=bind,source=requirements.txt,target=requirements.txt \
    pip3 install -r requirements.txt

COPY src/*.py /app


CMD python3 /app/main.py

and docker-run.sh:

docker build . -t ai-rl-docker
docker run --rm -it --name ai-rl ai-rl-docker
